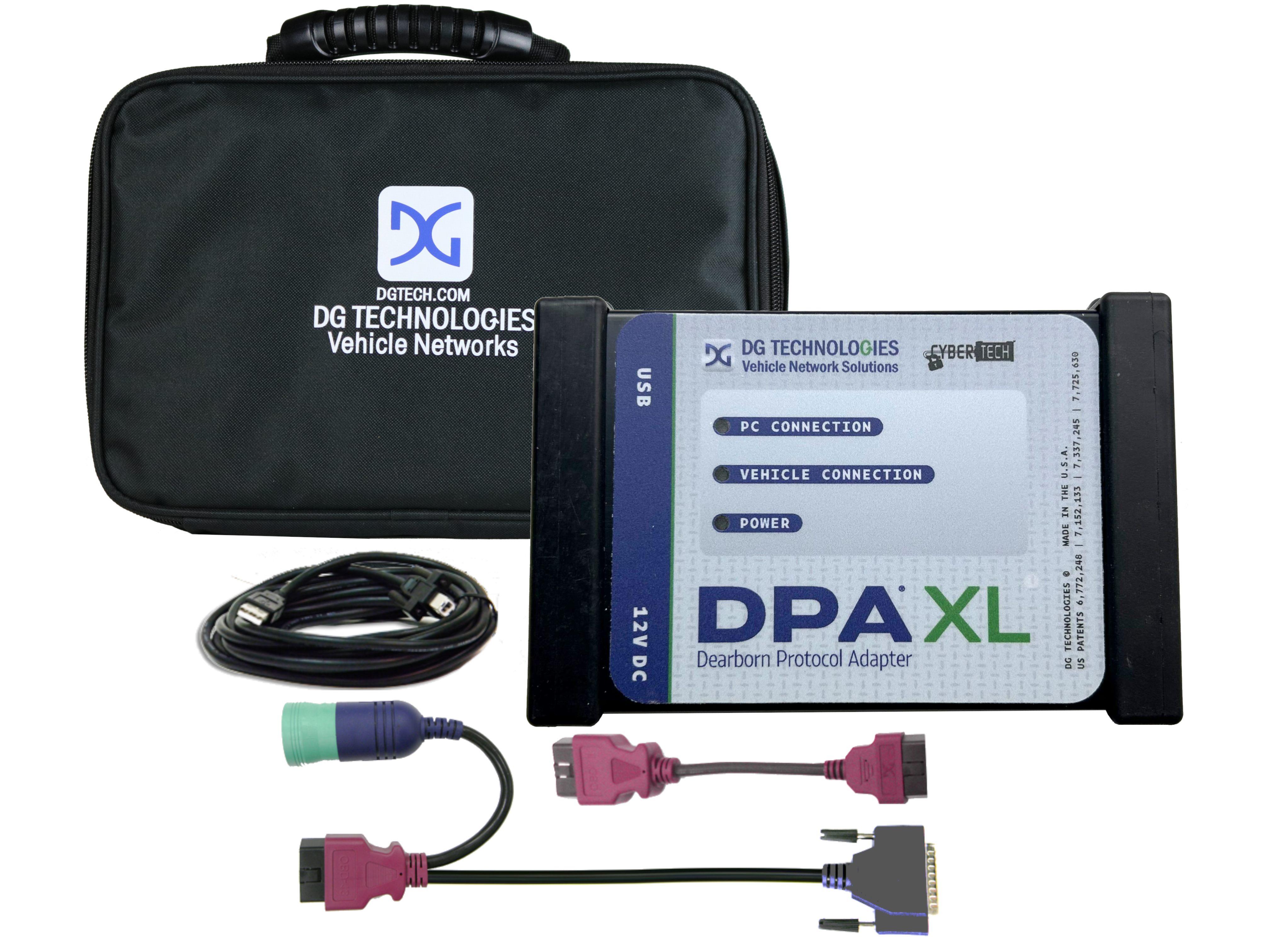

DPA XL V13 Kit


The DPA XL is DG’s newest, TMC RP1210-compliant Dearborn Protocol Adapter (DPA) with current and future technologies built-in for years of shop services. It is the leading tool of choice for Diagnostics and Reprogramming of Heavy-Duty, Medium-Duty and some Light-Duty vehicles and covers over-the-road, bus, construction, agricultural, military, industrial stationary equipment and fleet vehicle segments.

This kit includes “Y” cable for Volvo vehicles 2013+ with a J1962-style connector and a standard 9-pin Deutsch connector.

SKU: DG-400-10881 Categories: ,



  • DPA XL Adapter
  • USB Cable with thumb screws
  • Quickstart Guide
  • Carrying Case
  • DG-295-10839
  • Includes RP1210 VDA Validation Tool (Adapter Validation Tool from DG Technologies)
  • Includes J2534 VDA Validation Tool (JVT from DG Technologies)


  •  Connects DPA XL to the OBDII (J1962) connector of some 2013 and newer trucks for performing diagnostics using OEM applications or DG Diagnostics.

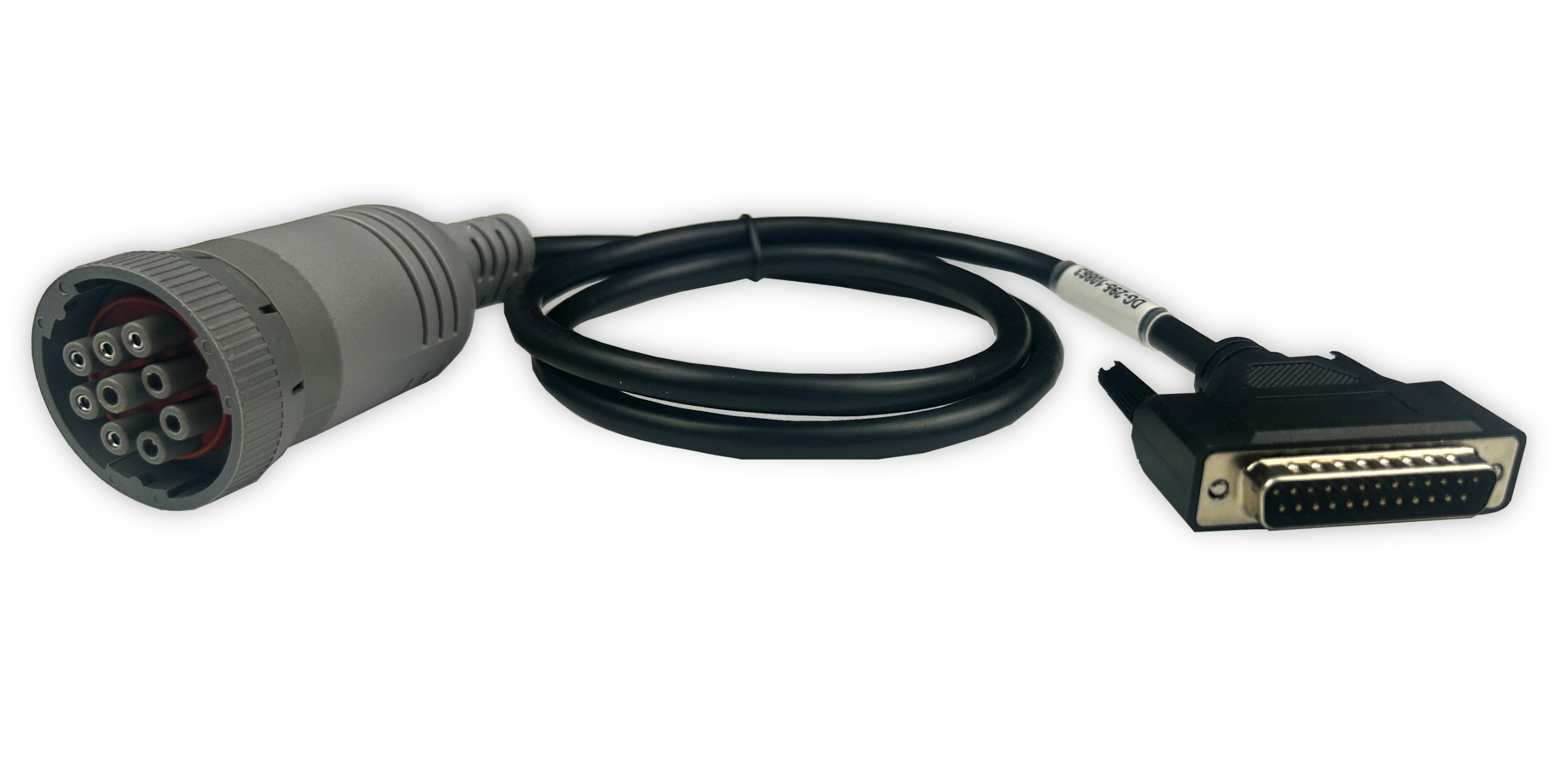

  • The J1939 Type II Deutsch connector connects to all J1939 Type II and Type I connectors for J1708 and J1939 OEM diagnostics.
  • The J1962 connector covers light- and medium-duty vehicles using CAN/ISO15765 (2008 and newer mandated), as well as GM J1850, GM SWCAN and ISO9141 protocols.


  •  This cable is used in conjunction with the V13 Y-Cable to run J1939-based component diagnostic applications from Allison, Eaton, Meritor-WABCO, Bendix and more on the 2013 and newer Volvo/Mack vehicles with a Volvo engine. It allows J1939 and J1708/1587 communication using the vehicle OBDII diagnostic port.

Additional information

Weight 4 lbs
Dimensions 12 × 10 × 4 in
