OBD II Breakout Box

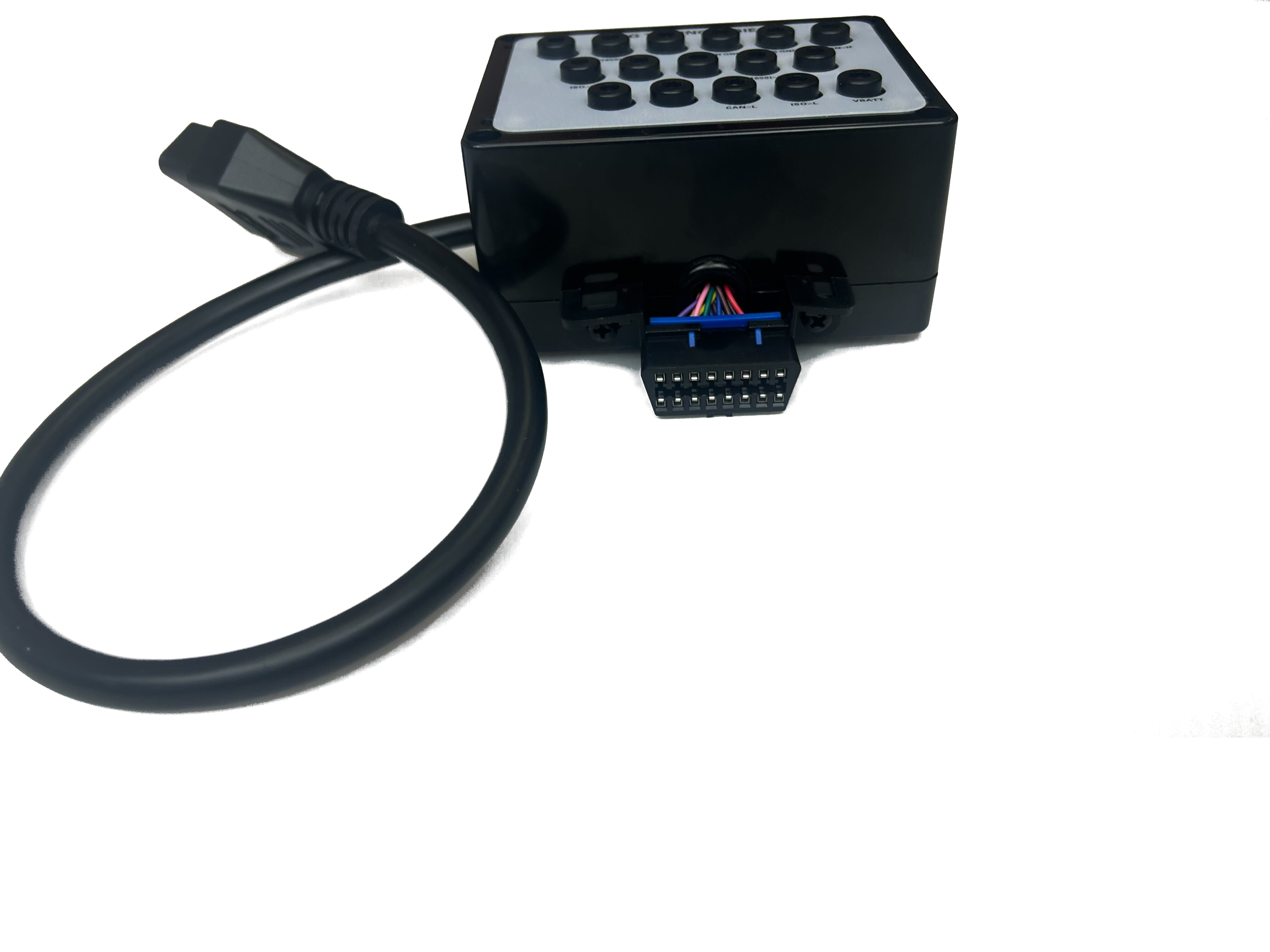

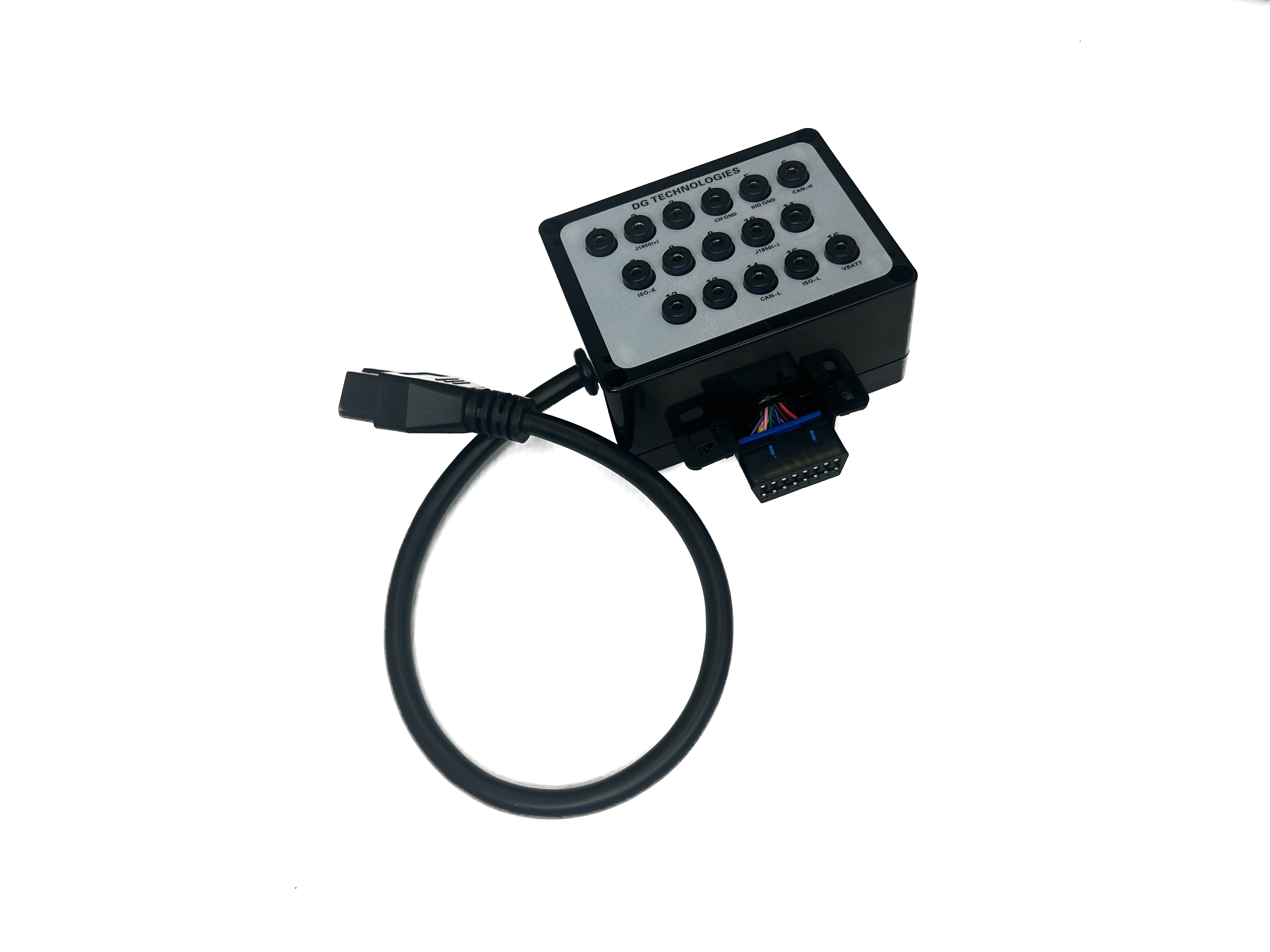

Our OBDII Breakout Box gives you a practical and easy to use in-line breakout box to make an electrical connection to the vehicle On-Board Diagnostic connector (SAE J1962 or OBD connectors) without disturbing the connection between the vehicle and the tool making it possible to execute a test while simultaneously monitoring the testing process.

Using two OBDII interface connectors and standard banana plug connection points for each pin, the OBDII Breakout Box gives you access to all lines in the J1962 cable. This lets you attach multiple tools or equipment that utilize a J1962 OBD connection.

SKU: DG-OBDII-BOX Categories: ,


• Two OBDII Standard J1962 Female (Car-Side) Connectors.
• One J1962 Male Connector on a 3′ extension cable.
• All 16 pins broken out to Banana Plug connections.

Additional information

Weight 2 lbs
Dimensions 12 × 10 × 3 in
