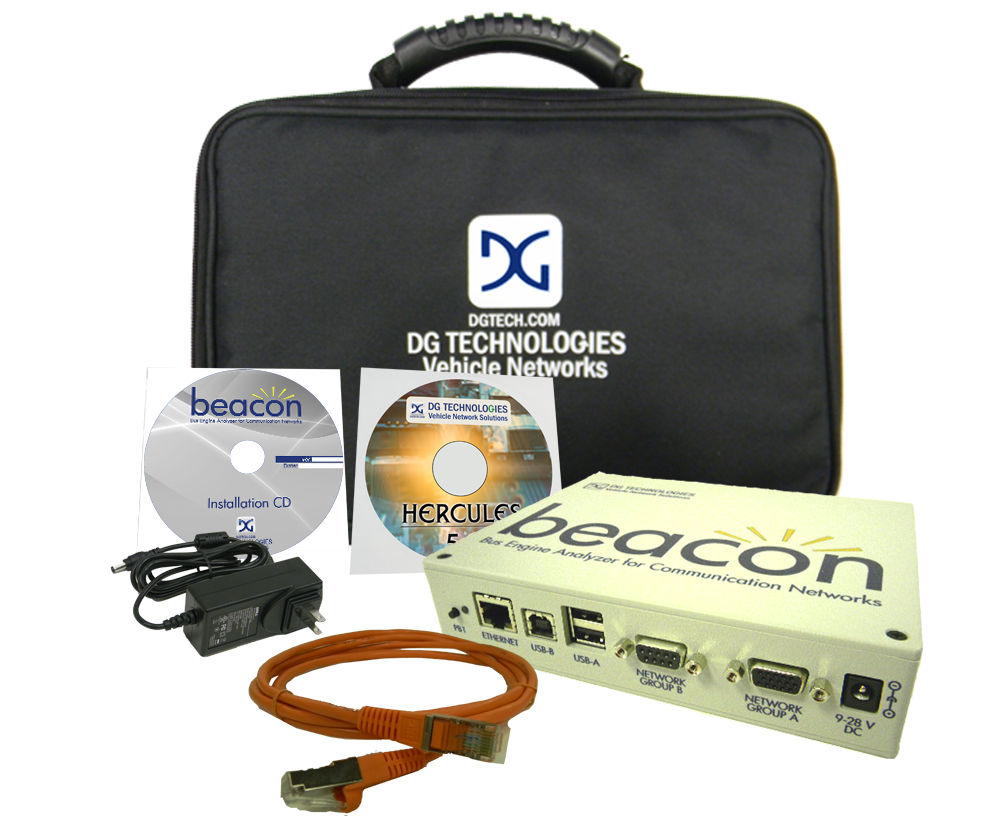

BEACON: Bus Engine Analyzer for Communication Networks

Vehicle Network Design and Development Tool

The next generation tool providing BUS ENGINE compatibility and BUS MONITOR usability for
EOL testing, ECU prototyping, data logging, bus analysis, simulation, validation, diagnostics, reprogramming and more!


  • 6 High Speed CAN/CAN FD Channels
  • 1 Single Wire CAN Channel
  • 1 Fault Tolerant CAN Channel
  • 2 Local Interconnect Network (LIN) Channel
  • 1 GB Ethernet Connectivity
  • Wi-Fi Enabled
  • USB Connectivity
  • On-board Media Storage
  • Can be powered by USB, the vehicle, or 12V Power Adapter (included)


  • Includes: Analysis Software Included (Hercules), Data Logger Software (Gryphon Logger Config), Bus Engine Driver, J2534 & RP1210 API Compatible
  • Compatible with: Bus Monitor, Busmaster, Matlab, LabView, DPS Tools
